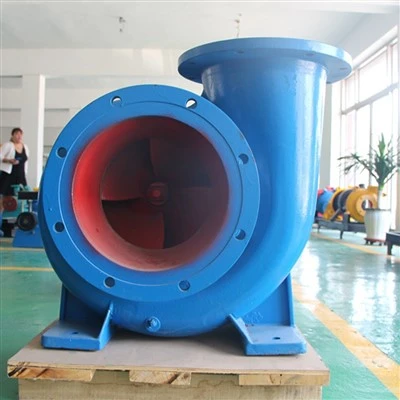

Electric Sludge Pump
It is mainly used in pits, drainage points and process lines where clean water pumps would block or wear too fast.
The pump has a motor drive, casing, impeller, shaft, bearing parts and seal parts. The passage should be matched with the sludge condition because soft mud, sand water and fibre water do not move in the same way. Some structures allow the gap near the impeller to be adjusted after normal wear. The inlet area should stay open, and the pipe should not make a sharp turn too close to the pump. During use, workers should watch seal water, vibration, bolt condition and bearing temperature.
The set can include pump casing, impeller, shaft, bearing assembly, seal parts, coupling, motor, base and spare wet parts when needed.
Product Parameters
|
Parameter |
Value |
|
Pump form |
Horizontal or vertical impurity pump |
|
Solids concentration |
About 50-60% by weight |
|
Discharge size |
50-600 mm by model |
|
Flow range |
10-7000 m³/h by model |
|
Head range |
5-60 m by model |
|
Power range |
1.5-315 kW by model |
Product Advantages
Electric sludge pump selection can follow real flow, head and solids data.
Wear parts can be chosen by abrasion and corrosion condition.
The motor drive is simple for fixed site power.
Main Applications
1. Construction mud pits, sediment ponds and sludge tanks.
2. Wastewater with sand, fibre or small soft solids.
3. Filter press feeding and tank cleaning work.
4. Temporary drainage points using electric power.
FAQ
Q: Can it handle thick sludge?
A: Yes, when solids content, particle size and flow data are clear.
Q: What information is needed first?
A: Flow, head, medium, solids, particle size, temperature and outlet size are needed.
Q: How often should electric sludge pump users inspect it?
A: Seal water, bolts and bearing temperature should be checked often, with a fuller check every 3-6 months.
