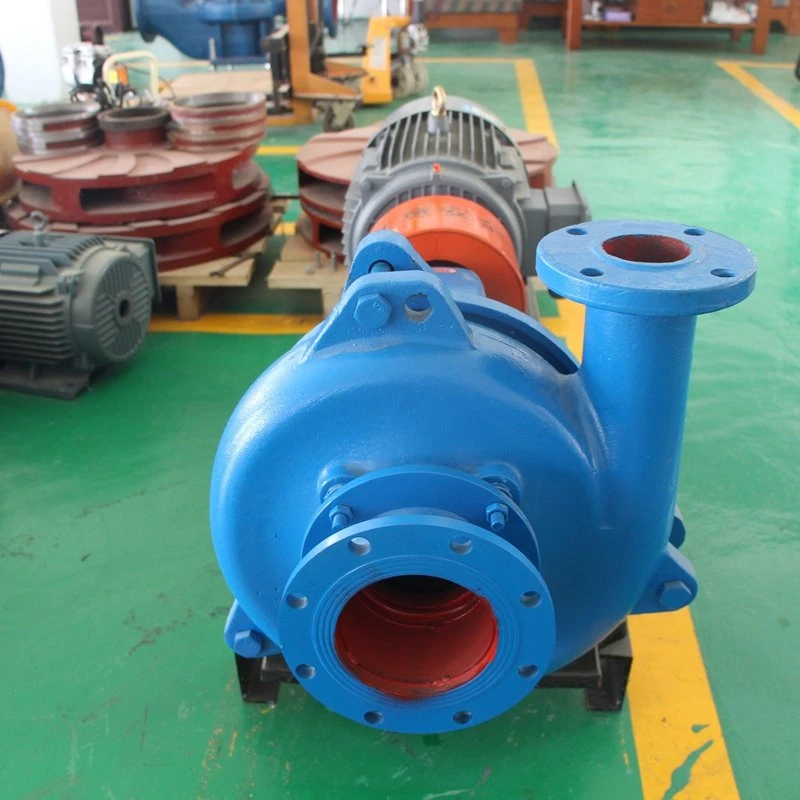

Sludge Vacuum Pump
The sludge vacuum pump combines self-priming work with impurity liquid transfer. It can draw liquid through a suction pipe and discharge water mixed with sand, soft sludge or small solids. The suction lift and pipe length affect start-up, so they should be checked before model selection. Wet parts need attention because abrasive slurry can wear the impeller and casing. The pump should be placed where the motor, seal and suction line can be inspected without difficult disassembly.
The sludge vacuum pump includes pump casing, impeller, shaft, sealing unit, bearing part, suction port, discharge port, motor and base. Wear parts can be selected for harder slurry.
Product Parameters
|
Parameter |
Value |
|
Pump form |
Self-priming centrifugal type |
|
Self-priming lift |
Up to 5 m by model |
|
Seal form |
Multi-face centrifugal sealing |
|
Installation style |
Basic setup by model |
|
Medium |
Mud, sludge and mixed water |
Product Advantages
Self-priming use helps start from lower liquid points.
The seal and wet parts can be matched with site medium.
The pump is easier to inspect when placed with enough access.
Main Applications
1. Muddy pit drainage where suction lift is needed.
2. Wash water and sand-water transfer on work sites.
3. Temporary pumping points with dirty liquid.
Our Services
Support includes duty point review, suction lift checking, medium discussion, spare part advice and packing photos.
Flow, head, suction height, solids size, particle content and seal condition should be checked before the model is selected.
FAQ
Q: How is the sludge vacuum pump used on site?
A: It draws dirty liquid from a lower point and sends it to the discharge line.
Q: Is suction pipe length important?
A: Yes. Long suction pipe can affect start-up and flow.
Q: What should be inspected often?
A: Seal condition, bolts, bearings, suction pipe and impeller wear should be checked.
